F4 1S AIO FC(SPI Rx) integrates 4 components as F411 FC, 5A ESC, 25mW VTX and SPI receiver. It is ultralight only 3.92g and still maintains an amazing performance capability, which makes it become your best choice to run with a 1S brushless quad!

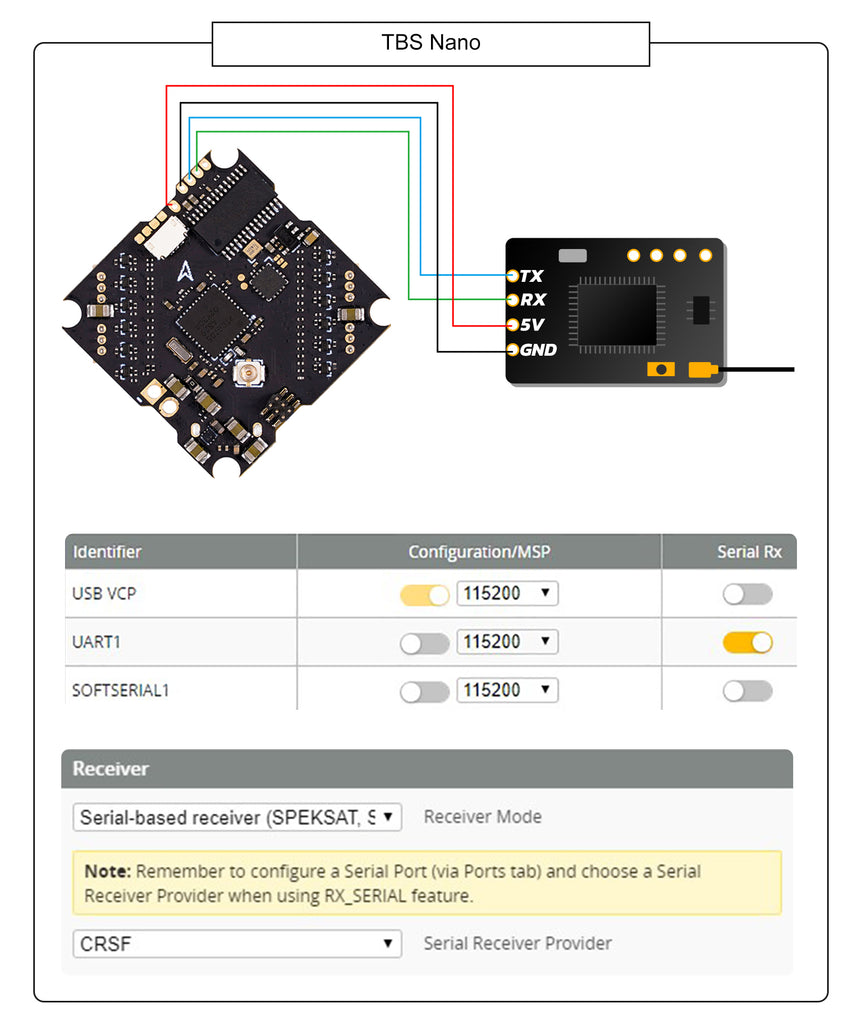

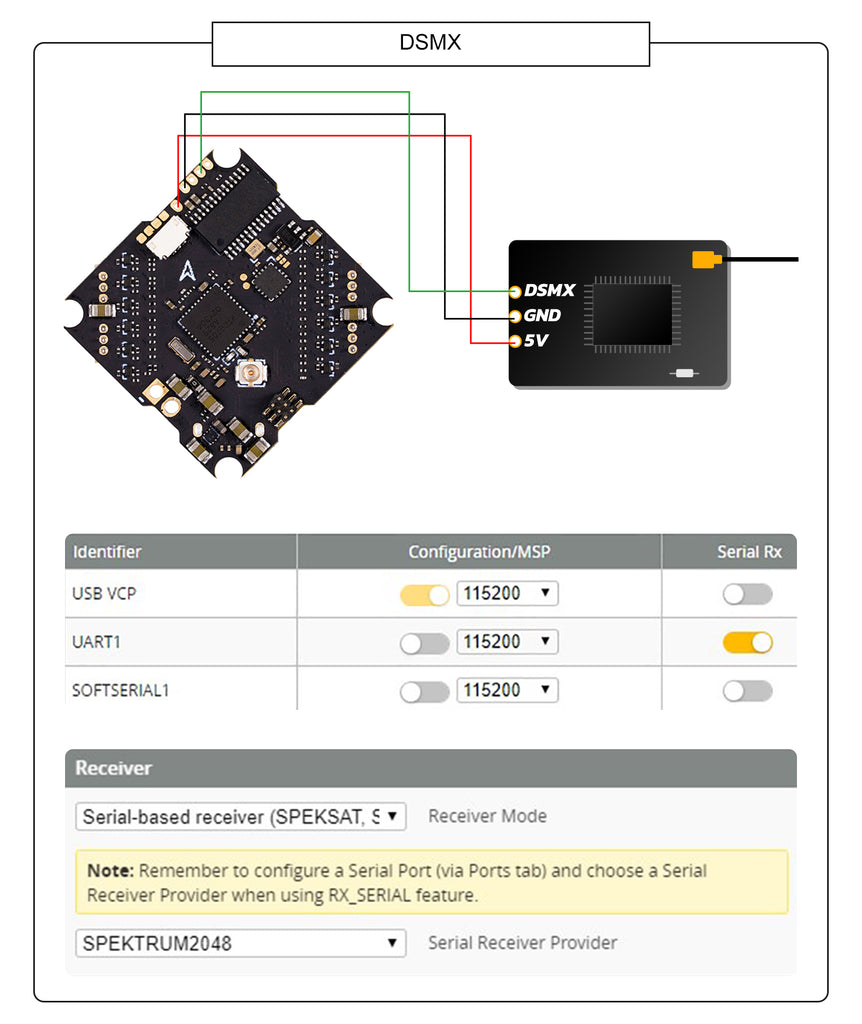

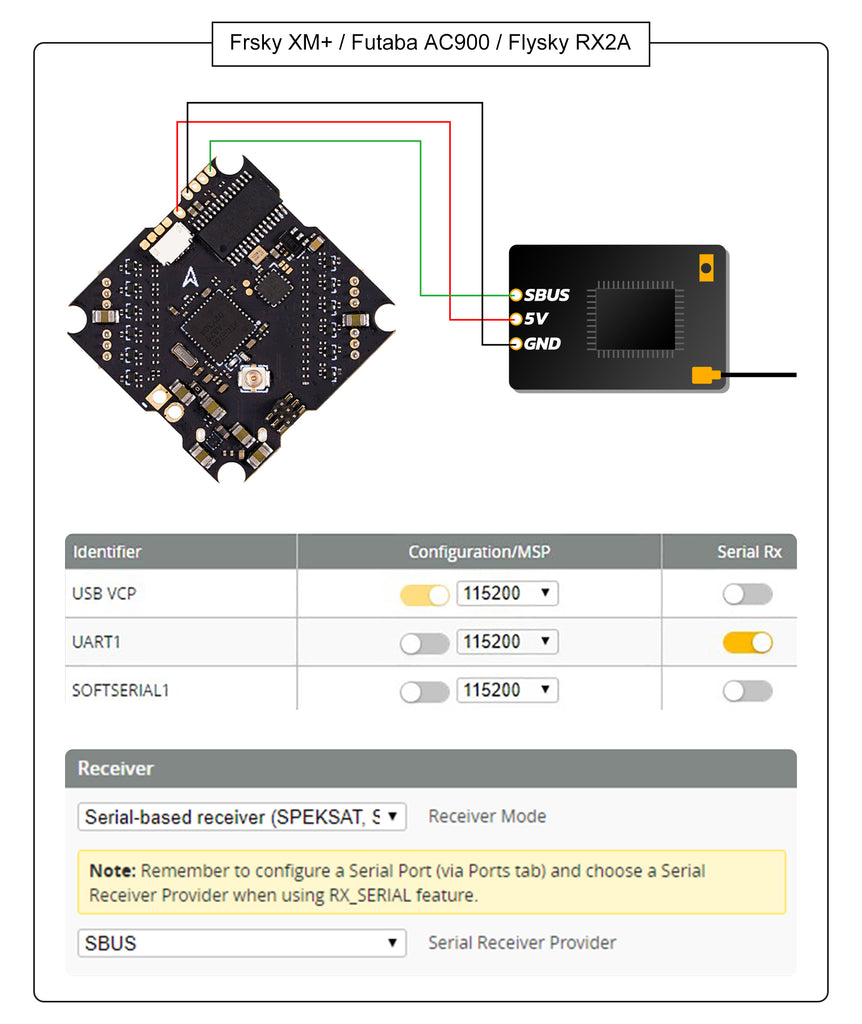

F4 1S AIO FC(No Rx) integrates 3 components as F411 FC, 5A ESC and 25mW VTX. It supports external receivers like TBS Crossfire, Frsky XM+ and Spectrum DSMX etc. Meanwhile, this version can handle the 2S power system.
Integrated with a 25mW VTX, this AIO board(Frsky/Futaba Rx) is ultralight only 3.92g, which can extremely save the weight of building drone, perfectly suitable for the 1S weight-sensitive drone such as Meteor65 HD and HX100 SE.
F4 1S AIO FC(No Rx) not only integrates with the 25mW VTX but also supports a 1-2S power system, which is perfectly suitable for the weight-sensitive drone such asMeteor75 andBeta85 Pro2.
Specially added with 2 RGB LED indicators, this board brings the drone an incredible light effect while pilots flying on the night.
This board can handle 5A continuous current(6A burst), supports the 1S lipo battery, brings the drone a stronger flight performance.
Come with a BT2.0 connector, it solves the problem of voltage sag, the discharge can be more efficient, which brings this board a better performance on function for power and responsiveness.
Specification of F4 1S AIO FC(SPI Rx)
Item: F4 1S AIO FC(Frsky/Futaba Rx)
Weight: 3.92g(without antenna and BT2.0 connector)
VTX Power: 25mW
CPU: STM32F411CEU6 (100MHZ )
Six-Axis: MPU6000 (SPI connection)
Firmware version: betaflight_4.2.0_STM32F411
Receiver: Support Frsky Receiver/ Futaba Receiver
Motor Pin Connecter: 1.25mm Header Pins
Mounting hole size: 29mm x 29mm / suitable for almost all kind of whoop frame
Specification of ESC
Built-in ESC with 5A continuous and peak 6A current
Input voltage: 1S Lipo
ESC firmware: O_H_5_REV16_8.HEX
OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM
4 Indicators: Receiver indicator (Blue)/Flight control status indicator (Green)/Flight control power indicator (Red)/VTX indicator (Pink)
Diagram for F4 1S AIO FC(SPI Rx)
SPI Receiver CC2500
Come with the build-in SPI Receiver CC2500, F4 1S AIO FC(SPI Rx) can compatible with Futaba S-FHSS, Frsky D8 and D16 protocol. The default Frksy protocol is Frsky D16, if pilots buy the wrong receiver of the SPI Frsky version or upgrade the wrong firmware accidentally, which needs to switch the protocol to Futaba or FrskyD8, please upgrade the Betaflight Firmware according to this tutorial.
Frsky D16 FCC
Frsky D16 LBT
Status LED for F4 1S AIO FC(SPI Rx)
There are 4 LEDs on the bottom of the board to indicate the status, including the Receiver LED ( Blue), FC Status LED(Green), FC Power LED ( Red ) and VTX LED(Pink).
Receiver LED ( Blue)
Connected or in bind mode
Receiver LED ( Blue )
Power LED ( Red )
Status LED ( Green )
Status LED ( Green )
Status LED ( Green )
VTX LED ( Pink )
Recommended Parts of F4 1S AIO FC(Frsky/Futaba Rx)
