F4 1S AIO Brushless Flight Controller
Bullet Point
- Integrated with a 25mW VTX, this AIO board(Frsky/Futaba Rx) is ultralight only 3.92g, which can extremely save the weight of building a drone, perfectly suitable for the 1S weight-sensitive drone such as Meteor65 HD and HX100 SE.
- F4 1S AIO FC(No Rx) not only integrates with the 25mW VTX but also supports a 1-2S power system, which is perfectly suitable for weight-sensitive drones such as Meteor75 and Beta85 Pro2.
- This AIO board also reserves a Plug & Play port for the C01 Camera, C01 Pro Camera, and BETAFPV Nano HD Camera, no soldering work needed, super convenient for installation.
- Specially added with 2 RGB LED indicators, this board brings the drone an incredible light effect while pilots flying on the night.
- This board can handle 5A continuous current(6A burst), supports the 1S lipo battery, brings the drone a stronger flight performance.
- Come with a BT2.0 connector, it solves the problem of voltage sag, the discharge can be more efficient, which brings this board a better performance on function for power and responsiveness.
Specification of F4 1S AIO FC(SPI Rx)
- Item: F4 1S AIO FC(Frsky/Futaba Rx)
- Weight: 3.92g(without antenna and BT2.0 connector)
- VTX Power: 25mW
- CPU: STM32F411CEU6 (100MHZ )
- Six-Axis: MPU6000 (SPI connection)
- Firmware version: betaflight_4.2.0_STM32F411
- Receiver: Support Frsky Receiver/ Futaba Receiver
- Motor Pin Connecter: 1.25mm Header Pins
- Mounting hole size: 29mm x 29mm / suitable for almost all kinds of whoop frame
Specification of ESC
- Built-in ESC with 5A continuous and peak 6A current
- Input voltage: 1S Lipo
- ESC firmware: O_H_5_REV16_8.HEX
- OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
- Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM
- 4 Indicators: Receiver indicator (Blue)/Flight control status indicator (Green)/Flight control power indicator (Red)/VTX indicator (Pink)
Diagram for F4 1S AIO FC(SPI Rx)
SPI Receiver CC2500

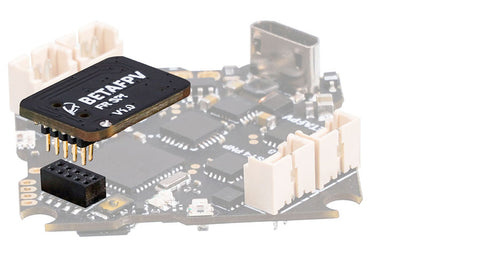

Come with the build-in SPI Receiver CC2500, F4 1S AIO FC(SPI Rx) can compatible with Futaba S-FHSS, Frsky D8, and D16 protocol. The default Frksy protocol is Frsky D16, if pilots buy the wrong receiver of the SPI Frsky version or upgrade the wrong firmware accidentally, which need to switch the protocol to Futaba or FrskyD8, please upgrade the Betaflight Firmware according to this tutorial.
Configuration |
Protocol |
FRSKY_D |
Frsky D8 |
FRSKY_X |
Frsky D16 FCC |
FRSKY_X_LBT |
Frsky D16 LBT |
SFHSS |
Futaba S-FHSS |
Status LED for F4 1S AIO FC(SPI Rx)
There are 4 LEDs on the bottom of the board to indicate the status, including the Receiver LED ( Blue), FC Status LED(Green), FC Power LED ( Red ), and VTX LED(Pink).
LED |
Status |
Description |
Receiver LED ( Blue) |
Solid |
Connected or in bind mode |
Receiver LED ( Blue ) |
Flashing |
Not connected |
Power LED ( Red ) |
Solid |
Power on |
Status LED ( Green ) |
Solid |
Motor Armed |
Status LED ( Green ) |
Flashing |
Motor Disarmed |
Status LED ( Green ) |
Off |
Bind |
VTX LED ( Pink ) |
Flash Slowly |
Work |
Recommended Parts of F4 1S AIO FC(Frsky/Futaba Rx)
- Battery: BT2.0 300mAh 1S Battery / BT2.0 450mAh 1S Battery / BT2.0 260mAh 1S Battery
- Frame: Meteor65 Frame / Meteor75 Frame
- Props: 31mm 4-Blades props / 40mm 4-blades props
- Motors: 0603 motors / 0703 motors / 0802 motors / 0802SE 22000KV Motor
- Camera: C01 Camera / C01 Pro Camera / BETAFPV Nano HD Camera
Specification of F4 1S AIO FC(No Rx)
- Item: F4 1S AIO FC(No Rx)
- Weight: 3.83g (without antenna and BT2.0 connector)
- VTX Power: 25mW
- CPU: STM32F411CEU6 (100MHZ )
- Six-Axis: MPU6000 (SPI connection)
- Firmware version: betaflight_4.2.0_STM32F411
- Receiver: Support External Receiver, SPI Receiver, including Frsky XM/XM+ receiver, Futaba receiver, Crossfire receiver, and DSMX receiver
- Motor Pin Connecter: 1.25mm Header Pins
- Mounting hole size: 29mm x 29mm / suitable for almost all kinds of whoop frame
Specification of ESC
- Built-in ESC with 5A continuous and peak 6A current
- Input voltage: 1-2S Lipo
- ESC firmware: S_H_70_REV16_7.HEX
- OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
- Signal support: D-shot150, D- shot300, D-shot600, Oneshot125, Multishot, PWM
- 4 Indicators: Receiver indicator (Green)/Flight control status indicator (Blue)/Flight control power indicator (Red)/VTX indicator (Pink)
Diagram for F4 1S AIO FC(No Rx)

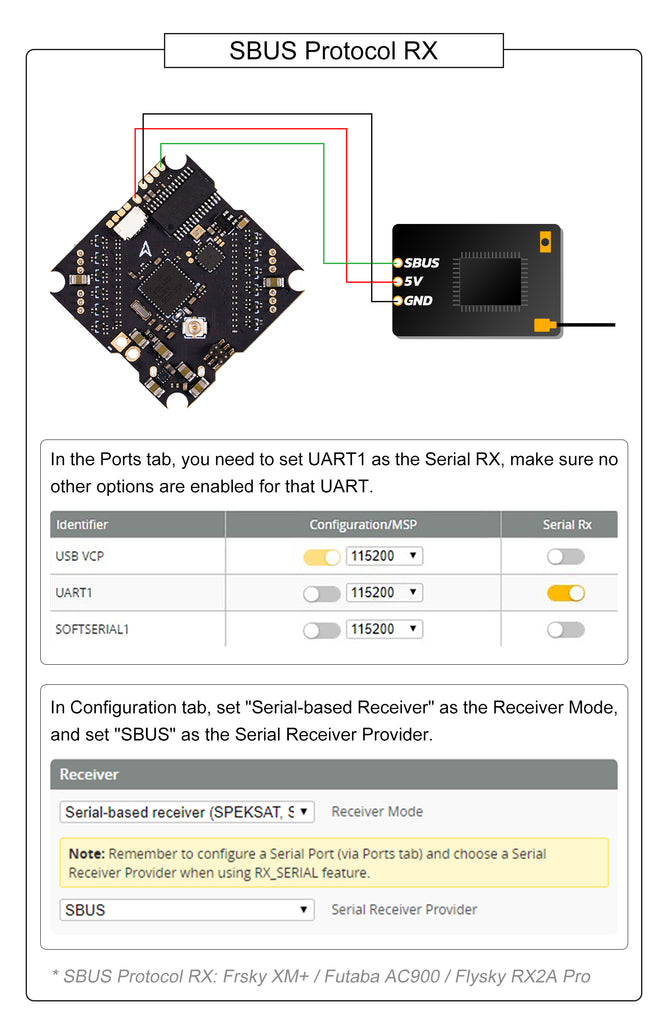

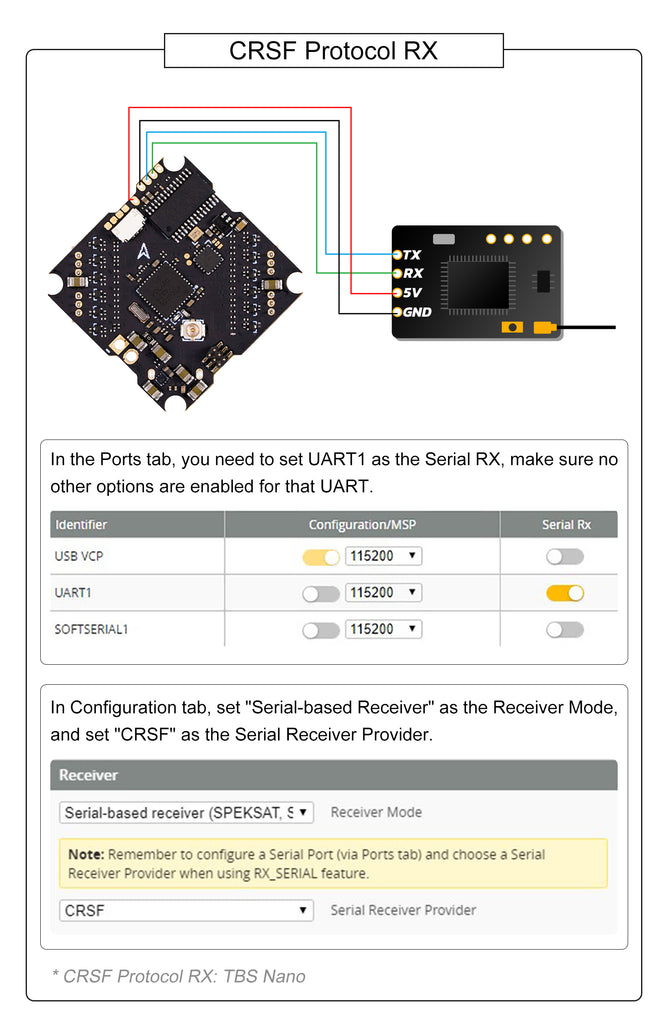

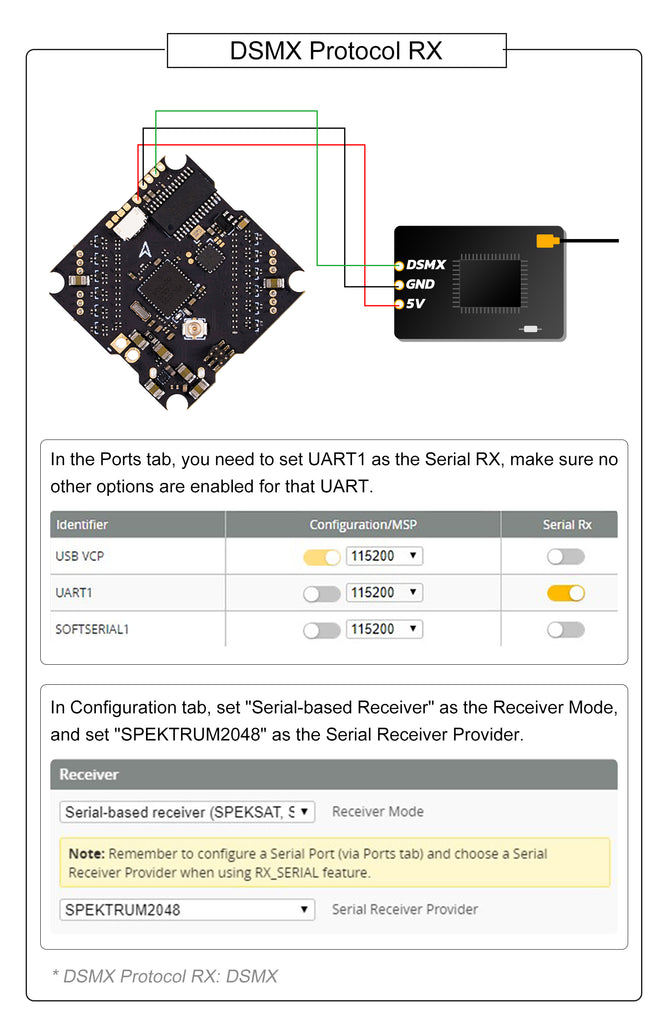

How to Connect the External Rx to the FC(No Rx)
For more convenience to the pilots, we specially design the Plug & Play SPI Frsky Rx for the F4 1S AIO FC(No Rx), no soldering work needed, super easy to install.
Receiver Connection Diagram
Status LED for F4 1S AIO FC(No Rx)
There are 4 LEDs on the bottom of the board to indicate the status, including the Receiver LED (Green), FC Status LED(Blue), FC Power LED ( Red ) and VTX LED(Pink).
LED |
Status |
Description |
Receiver LED ( Green) |
Solid |
Connected or in bind mode |
Receiver LED ( Green) |
Flashing |
Not connected |
Power LED ( Red ) |
Solid |
Power on |
Status LED ( Blue ) |
Solid |
Motor Armed |
Status LED ( Blue ) |
Flashing |
Motor Disarmed |
Status LED ( Blue ) |
Off |
Bind |
VTX LED ( Pink ) |
Flash Slowly |
Work |
Recommended Parts of F4 1S AIO FC(No Rx)
- Battery: BT2.0 300mAh 1S Battery / BT2.0 450mAh 1S Battery / BT2.0 260mAh 1S Battery/ BT2.0 300mah 2S Battery
- Frame: Meteor65 Frame / Meteor75 Frame / Beta85 Pro2 Frame
- Props: 31mm 4-Blades props / 40mm 4-blades props / Gemfan 2020 4-Blades Props
- Motors: 0603 motors / 0703 motors / 0802 motors / 0802SE 22000KV Motor / 1103 11000KV motors / 1102 18000KV motor
- Camera: C01 Camera / C01 Pro Camera / BETAFPV Nano HD Camera
Package
- 1 * F4 1S AIO Brushless Flight Controller
- 4 * M1.2x4mm Screws
- 4 * M1.4x5mm Screws
- 4 * Anti-vibration Rubber dampers
Betafpv.com offers a (30) day manufacture defect warranty, starting from the date the product(s) was delivered to the customer. If more than 30 days have passed since receiving your purchase, unfortunately we can’t offer you a refund or exchange.
For merchandise was confirmed as genuinely defective(Product Design problem & Quality issues), we will ship out a replacement free of charge directly. The consumer will not be charged any fees for approved warranty service.
In almost all cases, we will work with you to debug your issue firstly.
Each claim should have all proof of defect by mean of photo or video showing clearly the defect of the product. Please create a ticket to send us photos or video of your product, a detailed description of your issue, and a description of what you have already done to fix it. We are happy to solve any problem you may meet.
NOTE: The refund amount is limited to the purchase price of the item.
