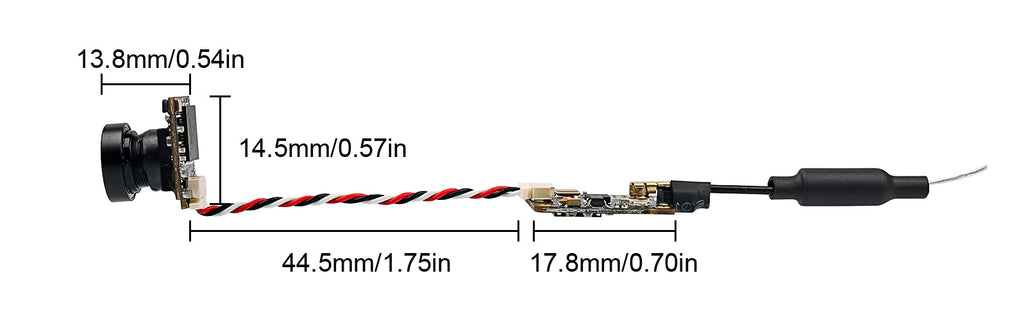

M01 AIO Camera 5.8G VTX V2.1 is upgraded into a pin-connected version, easy to connect with the camera. With the ultra-lightweight 2.72g. It comes with a super Mini 5.8GHz FPV Transmitter, 1200TVL FPV Camera (C02), and RG178 Antenna features 6 bands and 37 channels on the 5.8GHz band with Raceband which is perfect for Pro Series and Brushed Whoop Drone.
The following diagram describes the organization and wiring of the physical components on the M01 VTX V2.1 board.
Here is the diagram about how to connect the VTX to F4 AIO 1-2S FC.
Note: The canopy in the package is updated to the Micro Canopy 2022 version white color and a heatsink is added to the C02 camera.
The following diagram describes the organization and wiring of the physical components on the M01 VTX board.
M01 VTX comes with pluggable pins, which is convenient assembly with brushed FC like F4 1S Frsky brushed FC
M01 AIO Camera 5.8G VTX V2.1(Pin-Connected)
