DO NOT FLY WITH 4S BATTERY. Only support 2-3S battery nowadays.
Beta85X HD Crusing the Wonderland by Benoit
Even though you can only fly 3S on Beta85X now, you can still get tons of fun and speed in this cine whoop.
Beta85X 3S HD Freestyle Flight by BGUFF
(Note: the video is upscaled to 4K. The Caddx Turtle V2 Camera used on the Beta85X supports 1080p)
Le Cinewhoop by SEKILE FPV
"CineWhoop" (Beta85x / DJI Mavic Pro) by Larsco FPV
For more videos about these Beta85X Whoop drones, please check here:
Have any questions about Beta85X Whoop drone? Join our group on Facebook:
Join the online discussion about our X Series Whoop drones at RCGroups.com:

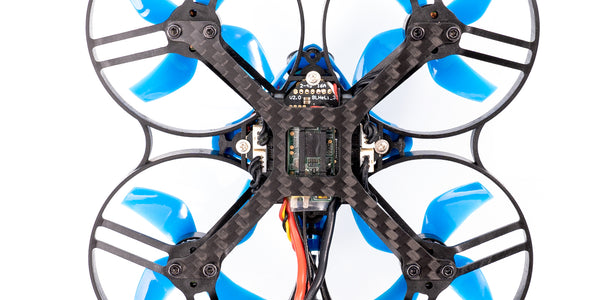

- Beta85X pushes the new era of brushless whoop drones to a higher level. With the new power system, you could fly real acro even with a HD DVR camera in racing or freestyle.
- With the high performance STM32F405 processor FC boards and tuned Betaflight Ominibus 3.5.0 firmware. This is also the first 2" BNF drone that come with BLHeli-32 ESC.
- Durable and light enough frame is customized for the Beta85X. Except the traditional carbon fiber frame, another choice of plastic frame for your 2" props drone.
- Whole drone no soldering or tinkering necessary. Customized lightest 1105 6000KV motors with cable connectors. Just plug and play. EMAX Avan 2" prop is the best combo in this Beta85X drone.
- 450mAh 3S high rate battery is recommend by default. But pilot could also use their own batteries with battery strap. Optional and affordable.
- Weight: 58g (without battery)
- Motors: 1105 6000KV with connector
- Props: EMAX Avan 2" 4-Blades Props
- FPV Camera: Customized EOS2 Camera ( for FPV version)
- HD DVR Camera: CADDX Turtle V2 ( for HD DVR version)
- HD DVR Canopy: Canopy for Beta85X (HD DVR)
- Receiver Option: Frsky XM+ / DSMX / Futaba S-FHSS / Flysky / TBS Crossfire
- Frame: Beta85X Frame
- 5.8G VTX antenna: Customized Lumenier AXII antenna
- Battery strap fits for micro 2S-3S battery
- Flight time: 2 min 30 sec with 450mAh 3S battery (smooth flight in a windless environment)
Find more details about this 2S F4 FC board in another page.
- CPU: STM32F405
- Six-Axis: MPU6000
- Size: 26mm x 26mm, whoop mounting pattern
- Firmware version: Betaflight OMNIBUSF4SD (OBSD) 3.5.0
- OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
- Smart Audio port is available for radio control VTX
Find more details about this BLHeli_32 ESC board in another page.
- Supports Oneshot125, Oneshot42, Multishot, Dshot150, Dshot300, Dshot600, Dshot1200
- Input voltage: 2S-3S lipo
- Cotinue current: 16A
- Peak current: 25A
- BLHELI_32 Firmware target: BETAFPV-16A-32bit
FPV Camera and VTX
- Output power: 0mW, 25mW and 200mW (Adjustable)
- Smart Audio function is included for radio control
- Antenna: Customized Lumenier AXII antenna
- Frequency: 5.8GHz 6 bands 48 channels, with Raceband: 5362~5945MHz
- Customized EOS2 FPV camera
- TV System: NTSC
- Field of view: 100-120 degrees with 1/3 lens
HD DVR Version
The primary purpose of the Beta85X drone is for a cinematic whoop drone. Many polits revamp their Beta75X to HD whoop drone--They add a HD DVR camera on Beta75X drone to get high defination and beautiful flying footage and video. Inspired by this, we want to provide a BNF whoop drone with HD DVR camera by default so that pilot do not need to assemble it by hand and also get more power on punch for acro mode.
Now the Beta85X HD version is here !!!
Inspirations by YKS' footage with Beta75X.
Know more about cine whoop from NURK FPV's blog.
In the Beta85X design, the part of HD DVR is independent of the drone. You could mount or remove the HD DVR part very easy. In default, the drone comes with CADDX Turtle V2 HD camera.
The canopy for HD DVR camera is 3d printing with SLA, which is compatible with Runcam Split Mini 2.
Download the STL File for the HD camera mount.
This ESC used to design for 4S battery. But under more extreme testing, it could only stand 2-3S voltage input. DO NOT FLY WITH 4S BATTERY.
BLHeli_32 is the 3rd generation ESC firmware after BLHeli and BLHeli_S, which is written for ESC‘s that utilize 32-bit MCU. With the increase in processing power, faster input signals with lower latency and higher update rate would be possible in BLHeli_32, such as Dshot1200!
Beta85X is the first 2" BNF drone that supports BLHeli_32 ESC. With the other power system parts, EMAX Avan 2" propellers and 1105 6000KV motors, it gives you the highest performance in flying experience.
Know more about BLHeli_32 ESC from Oscarliang's blog.
We lost a bunch of prototype drones because of this AXII antenna. Why? The 5.8g VTX signal is still perfect when the RC radio transmitter connection break. This is why we choose this micro antenna for the Beta85X.
Know more about Micro AXII 5.8G antennas.
The Beta85X drone also comes with "props out" by default. Why we need "props out" direction?
Default Betaflight props direction, quadcopter dips and "washes out" in hard corners. With reversed props or "props out", no more dipping even in hardest cornering.
Which camera is most popular on brushless whoop drones? That must be CADDX EOS2. Ligher, smaller but still have perfect image performance. Now it is the stock camera for Beta85X drone. At the same time, the 5.8g VTX board has all the other function of the Z02 camera, like output power switchable between 0mW, 25mW and 200mW. Smart audio is available for VTX remote control in default.
The EOS2 camera comes with the FPV version of Beta85X drone. The camera tilt angle is switchable from 25 degree to 45. So that it could support different flying situations (indoors and outdoors alike).
How to change the frequency or output power via remote control, please check the manual Smart Audio.
Download the STL file for the customized EOS2 camera mount.
1. Cli Dump of Beta85X ( Click here to find the details.)
3. Block diagram for the camera used on the 85X. (Find the details on our support page)
4. How to set up smart audio vtx control? (Multirotor Guide gives you the most straightforward explanation)
- 1 * Beta85X BNF 2S Whoop Quadcopter
- 1 * OSD cord (only for HD version)
There are no batteries included for all version. You should purchase 2-3S batteries (XT30) seperated.
