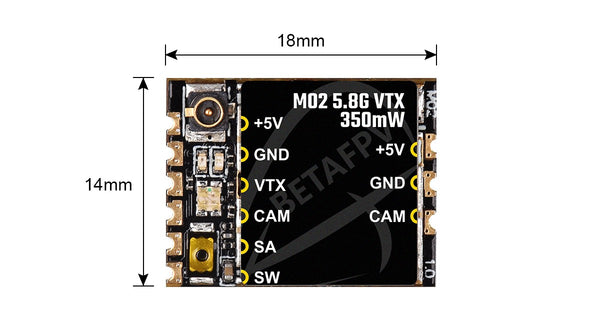

M02 VTX, a high-quality 5.8GHz VTX has 4 adjustable power including 25mW, 100mW, 200mW and 350mW. With 350mW output power, pilots can fly drones up to 600 meters away to explore more possibilities and fun. Only weight 1.7g. M02 VTX especially comes with a separate 26.5 * 26.5mm mounting hole, which is more flexible for building more types of drones. It's perfectly suitable for the 3-5 inch drone such as TWIG ET5, X-Knight 4'' FPV, and HX115 HD toothpick quad.
Here is the diagram about how to connect the VTX to Toothpick F4 2-4S AIO Brushless Flight Controller 20A(BLHei_S).
PitMode allows racers to power up their video transmitters during race events without interfering with other racers, and it still has the ability to change VTX settings or do some testing. The range is limited to 2-3m and transmission happens on the selected frequency.
The PitMode is active when the Red/Green/Blue Power LED flash.
How to active and exit the PitMode
Press the Button on the VTX twice to active Pitmode, double-press again to return to the previous power state.
How to Change Frequency & Channel & Power
Enter the OSD menu by radio transmitter sticks ( Pitch Stick UP and Yaw Stick Left). Then FEATURES -> VTX SA to change the frequency and power.
Switchable power includes 25mW, 100mW, 200mW and 350mW, and the PitMode is supported on this VTX.
Here are the 40CH frequency band and channel indicator status. Please follow the number of LED flashes to adjust your channel.
