F405 2-4S AIO 12A Brushless Flight Controller (BLHeli_S) V3 has been updated the F411 chip to F405, which can totally handle 12A continuous current(13A burst), gives pilots a powerful flight. Highly recommended using it on Beta75X series drone, Beta85X series drone and HX100 series drone such as Beta85X V2 and Beta85X HD Digital VTX.

The 20A F405 AIO FC decreases the board thickness from 1.6mm to 1.2mm, which reduced the weight to 5.3g while improving the ability of the ESC to continuous current 20A(22A burst). Now you can build a bigger quad with powerful FC to save weight and size such as the Beta95X Digital VTX, Beta95X V2 and Beta95X HD Digital VTX.

Because 12A V3 FC and 20A AIO V3 FC have unified the UART, both two boards have the same appearance, FC diagram, statue LED and way to connect the RX.

If you are looking for a toothpick version, please click here to reach out.

Bullet Point

  • Updated the F411 chip to F405, this new 20A(12A) board can handle 20A(12A) continuous current(22A(13A) burst), gives the pilots a powerful flight.
  • Come with 2 integrated Plug & Play Ports for both digital VTX and Rx, less solder work needed, easy to install.
  • Completed the traditional mounting hole, more like the Toothpick type, perfectly prevent the damping pad from falling off, which is the super-easy installation in most whoop frame.
  • BETAFPV 20A/12A AIO flight controller will unify the UART, which is convenient for pilots to solder.
  • Compatible with 110X, 120X, 140X motors, pilots can use the 20A(12A) AIO FC to build a bigger quad with this powerful FC to save weight and size.

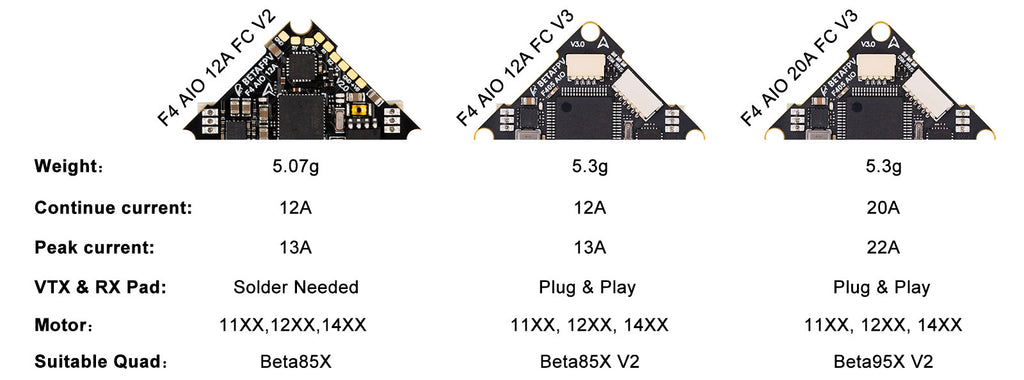

Comparison of F4 12A AIO FC V2, F405 12A AIO FC V3 & F405 20A AIO FC V3

Specifications of F405 20A AIO FC V3

    • CPU: STM32F405RGT6
    • Six-Axis: MPU6000
    • Size: 26mm x 26mm
    • Firmware version: Batefight-BETAFPV405-4.2.X
    • OSD: Built in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
    • Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
    • Connecter: XT30
    • Weight: 5.3g

    Specifications of ESC

    • Support PWM,Oneshot125,Oneshot42, Multishot,Dshot150,Dshot300,Dshot600
    • Input voltage: 2S-4S Lipo
    • Continuous current: 20A
    • Peak current: 22A
    • Firmware: BLHELI-S G-H-25

    Specifications of F405 12A AIO FC V3

    • CPU: STM32F405RGT6
    • Six-Axis: MPU6000
    • Size: 26mm x 26mm
    • Firmware version: Batefight-BETAFPV405-4.2.X
    • OSD: Built in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
    • Receiver: Support Frsky XM/XM+ Receiver/ Futaba Receiver/ Flysky Receiver/ TBS Crossfire Receiver/DSMX Receiver
    • Weight: 5.3g
    • Connecter: XT30

    Specifications of ESC

    • Support PWM,Oneshot125,Oneshot42, Multishot,Dshot150,Dshot300,Dshot600
    • Input voltage: 2S-4S Lipo
    • Continuous current: 12A
    • Peak current: 13A
    • Firmware: BLHELI-S G-H-25

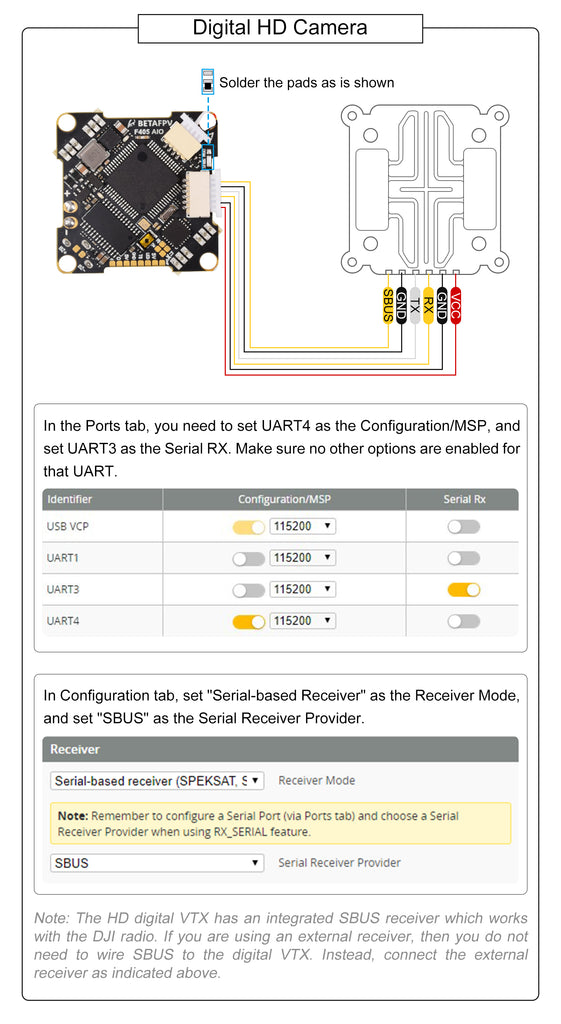

    Diagram for F405 20A AIO FC V3 & F405 12A AIO FC V3

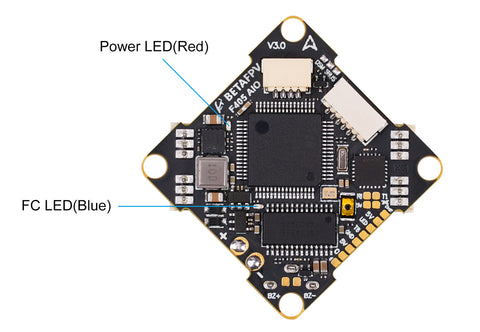

    Status LED for F405 20A AIO FC V3 & F405 12A AIO FC V3

    There are 2 LEDs on the bottom of the board to indicate the status, including the Power LED ( Red), FC LED(Blue).

    LED

    Status

    Description

    Power LED ( Red)

    Solid

    Power on

    FC LED ( Blue )

    Solid

    Motor Armed

    How to Connect the External Rx to F405 20A AIO FC V3 & F405 12A AIO FC V3

    The new AIO board has the Plug & Play Port for the external Rx, and there will be a 4-Pin connector for Rx in the package, pilots can enjoy less soldering work, easy for installation. In addition, when you connect the different external Rx, the pads near the pin need to be soldered as the following diagram.

    Here is the connection diagram with the Frsky XM+ receiver.

    Here is the connection diagram with the FS-RX2A receiver.

    Here is the connection diagram with the Futaba-X-BOSS AC900 receiver.

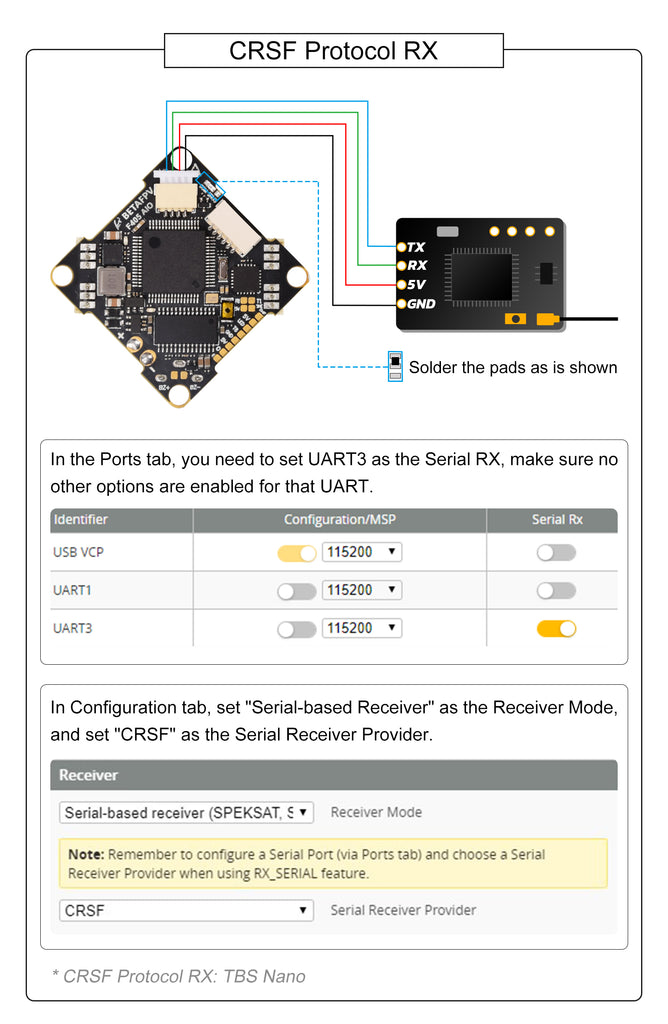

    Here is the connection diagram with the TBS Crossfire receiver.

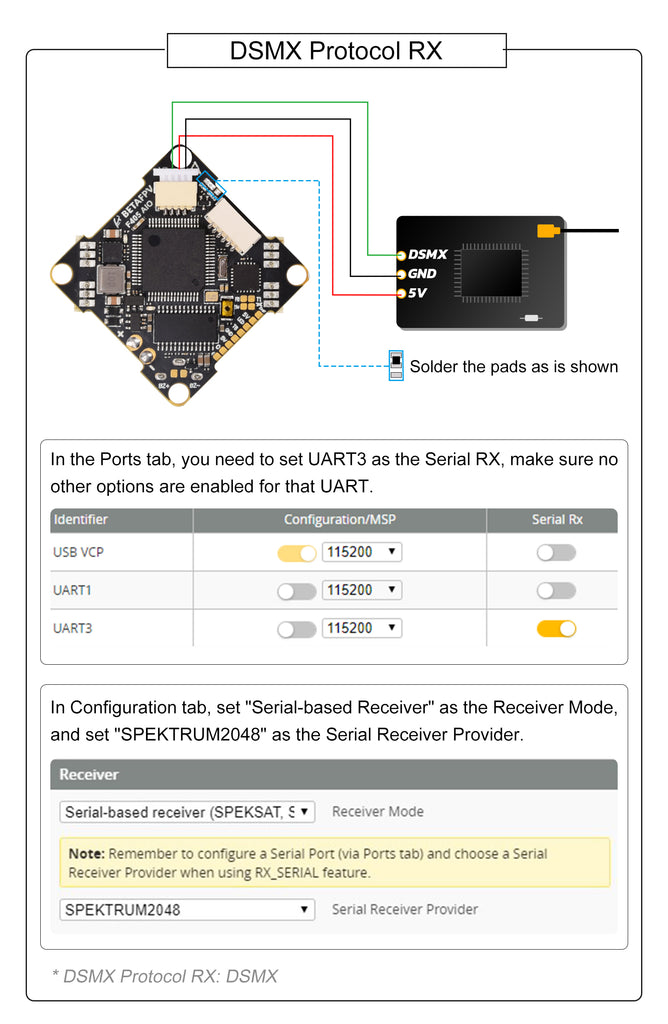

    Here is the connection diagram with DSMX FullSpeed receiver.

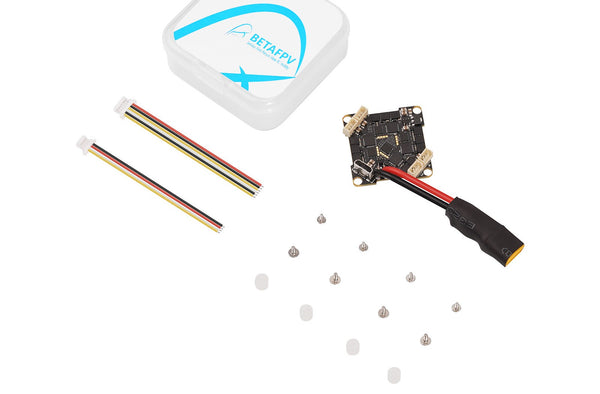

        Package

        • 1 * F405 20A AIO FC V3 or F405 12A AIO FC V3
        • 4 * M1.2x4mm screws
        • 4 * M1.4x5mm screws
        • 4 * Anti-vibration rubber dampers
        • * 6-Pin Connector for Digital VTX
        • * 4-Pin Connector for Rx
